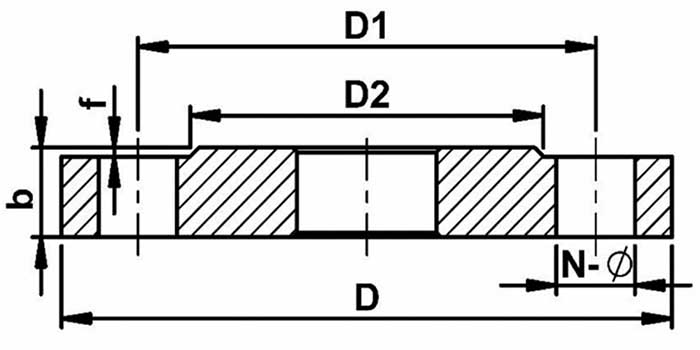

| ÖLÇÜ | D mm | D1 mm | D2 mm | b mm | DELİK SAYISI | DİŞ KALIBI | f | N*Ø mm | AĞIRLIK (7,85Kg/dm3) Kgs |
| DN15 | 95 | 65 | 45 | 14 | 4 | M12 | 2 | 14 | 0,668 |
| DN20 | 105 | 75 | 58 | 16 | 4 | M12 | 2 | 14 | 0,933 |
| DN25 | 115 | 85 | 68 | 16 | 4 | M12 | 2 | 14 | 1,106 |
| DN32 | 140 | 100 | 78 | 18 | 4 | M16 | 2 | 18 | 1,816 |
| DN40 | 150 | 110 | 88 | 18 | 4 | M16 | 3 | 18 | 2,075 |
| DN50 | 165 | 125 | 102 | 20 | 4 | M16 | 3 | 18 | 2,723 |
| DN65 | 185 | 145 | 122 | 20 | 4 | M16 | 3 | 18 | 3,310 |
| DN80 | 200 | 160 | 138 | 20 | 8 | M16 | 3 | 18 | 3,592 |
| DN100 | 220 | 180 | 158 | 22 | 8 | M16 | 3 | 18 | 4,375 |
| DN125 | 250 | 210 | 188 | 22 | 8 | M16 | 3 | 18 | 5,394 |
| DN150 | 285 | 240 | 212 | 24 | 8 | M20 | 3 | 22 | 7,123 |
| DN200 | 340 | 295 | 268 | 26 | 12 | M20 | 3 | 22 | 9,705 |
| DN250 | 405 | 355 | 320 | 29 | 12 | M24 | 3 | 26 | 14,164 |
| DN300 | 460 | 410 | 378 | 32 | 12 | M24 | 4 | 26 | 18,928 |
| DN350 | 520 | 470 | 438 | 35 | 16 | M24 | 4 | 26 | 28,118 |
| DN400 | 580 | 525 | 490 | 38 | 16 | M27 | 4 | 30 | 35,764 |
| DN450 | 640 | 585 | 550 | 42 | 20 | M27 | 4 | 30 | 45,992 |
| DN500 | 715 | 650 | 610 | 46 | 20 | M30 | 4 | 33 | 63,832 |
| DN600 | 840 | 770 | 725 | 55 | 20 | M33 | 5 | 36 | 101,285 |
PDF-PN16
