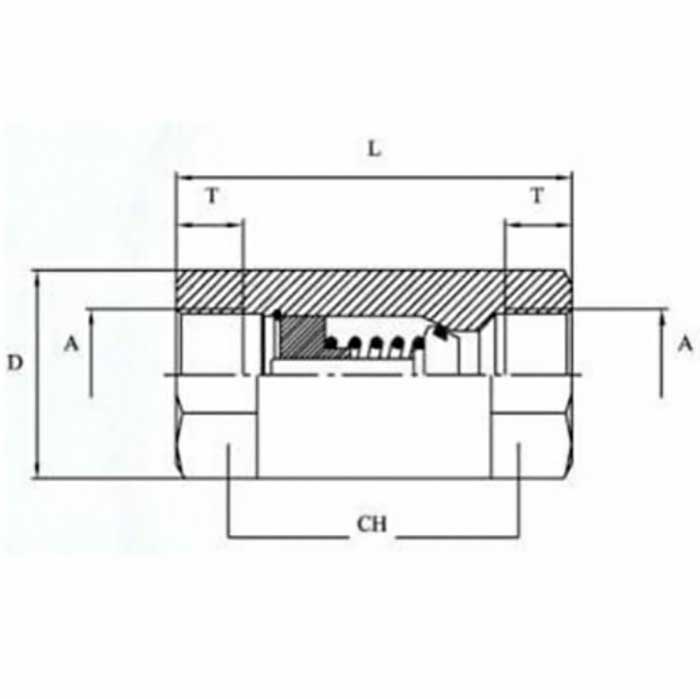

ÖLÇÜ |
A |
D |
L |
T |
CH |
Workingpressure |
Capacity(lt/mm) |
|||||
|
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
|||
|
6.3 |
1/4’’ |
1/4’’ BSP |
22 |
0.86 |
58 |
2.28 |
12 |
0.47 |
19 |
0.74 |
250 |
6 |
|
10 |
3/8’’ |
3/8’’ BSP |
25 |
0.98 |
62 |
2.44 |
14 |
0.55 |
22 |
0.86 |
250 |
10 |
|
12.5 |
1/2’’ |
1/2’’ BSP |
30 |
1.18 |
80 |
3.15 |
15 |
0.59 |
27 |
1.06 |
315 |
40 |
|
20 |
3/4’’ |
3/4’’ BSP |
42 |
1.65 |
86 |
3.38 |
16 |
0.62 |
36 |
1.41 |
315 |
70 |
|
25 |
1’’ |
1’’ BSP |
52 |
2.04 |
102 |
4.01 |
22 |
0.86 |
46 |
1.81 |
250 |
130 |
|
31.5 |
1 1/4’’ |
1 1/4’’ BSP |
68 |
2.67 |
130 |
5.11 |
22 |
0.86 |
60 |
2.36 |
250 |
190 |
|
40 |
1 1/2’’ |
1 1/2’’ BSP |
73 |
2.87 |
134 |
5.27 |
25 |
0.98 |
64 |
2.51 |
250 |
210 |
|
50 |
2’’ |
2’’ BSP |
77 |
3.03 |
170 |
6.7 |
29 |
1.14 |
68 |
2.67 |
250 |
288 |
Hidrolik-4
